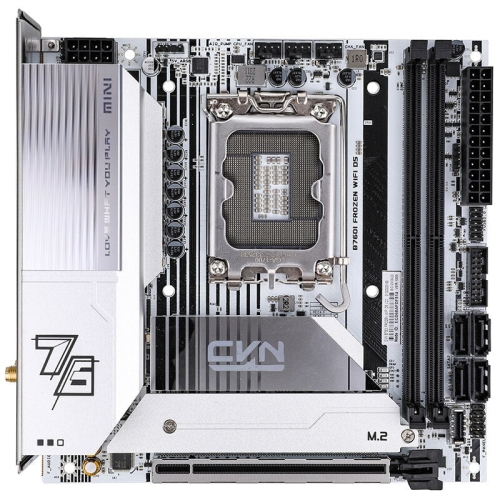

MAINBOARD COLORFUL CVN B760I FROZEN WIFI D5 V20

4.590.000 VNĐ

CVN series exclusive customized white motherboard
CVN series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation
Provide 2 PCIe 4.0 x4 M.2 SSD slots
Provide one USB 3.2 Gen 1 Type-C and two USB 3.2 Gen 1 Type-A high-speed rear interfaces
Equipped with Realtek 2.5G high-speed wired network card and AX200 WiFi 6 wireless network card, supporting Bluetooth 5.2
Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory
Six protection technologies, more stable product operation
200 processes are strictly tested with guaranteed quality
PCB atomization process comprehensively upgraded
"410" high-quality service and guaranteed after-sales service

Hotline tư vấn: 0935 278 779

CHI TIẾT SẢN PHẨM

Model	CVN B760I FROZEN WIFI D5 V20
Product Series	CVN series
Chipset	Intel B760
Processor	Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (* Please visit www.colorful.cn for the latest memory compatibility list)
Memory	2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) - DDR5-8000(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/ 5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list)
SATA Ports	2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_1 slot: support 2280 specification M 2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: support 2280 specification M 2 SSD(PCIe 4.0 x4, PCH channel) (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)
Board I/O	Rear I/O: - 4×USB 2.0 interfaces - 1×USB 3.2 Gen 1 Type-A interface - 1×USB 3.2 Gen 1 Type-C interface - 1×DP 1.2 interface, supporting a maximum resolution of 4K 60Hz - 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution - 1×2.5G network interface - 2×Wi-Fi 6 antenna interfaces - 3×audio interfaces - 1×Clear CMOS key On board: - 1×CPU fan pin - 1×System fan pin - 1×water cooling pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C slot can expand 1 USB 3.2 Gen 2 Type-C interface - 1×5V 3-pin ARGB pin - 1×Front audio pin - 1×Front panel pin - 1×Speaker pin
Expansion Slots	1×PCIe 5.0 x16 slot
BIOS	128M UEFI, support multiple languages
Power Management	Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor	CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN	RTL8125 2.5Gbit LAN, AX200 WiFi 6 wireless network card, Bluetooth 5.2
Audio	5.1 Channel sound card
Configuration	ITX 170mm x 170mm
