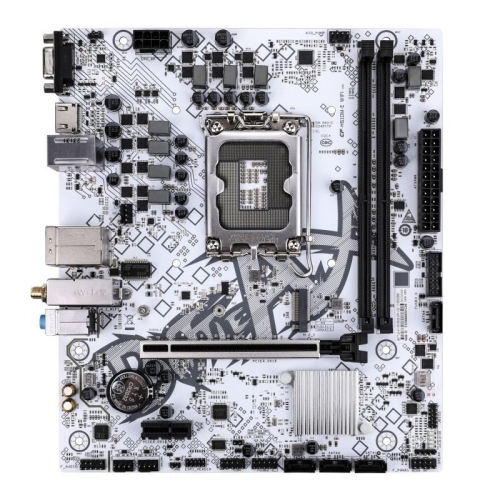

MAINBOARD COLORFUL BATTLE-AX H610M-E WIFI V20 (WHITE)
2.150.000 VNĐ
- Intel H610 chipset
- Support dual-channel DDR4-3200MHz memory
- Provide 1 PCIe 3.0 x4 M.2 SSD slot
- Equipped with HDMI+VGA display interface
- Equipped with Realtek 8111H Gigabit wired network card, RTL8821CE/AC3165 WiFi 5 Wireless network, Bluetooth 4.2
- Realtek ALC897 sound card chip with up to 5.1 channels
- Rear: 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
- Front: 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
Hotline tư vấn: 0935 278 779
CHI TIẾT SẢN PHẨM
| Motherboard series | Tomahawk series |
| chipset | Intel H610 |
| CPU support | Supports 13th and 12th generation Intel® CoreTM, Pentium® and Celeron® processors adapted to the motherboard’s LGA 1700 slot (*Please visit Colorful’s official website www.colorful.cn for the latest processor support list) |
| memory support | Provides 2 DDR4 memory slots, supporting up to 64 GB capacity memory (single slot supports up to 32 GB capacity) – Supports DDR4-3200/2933/2666/2400MHz memory – Supports dual-channel memory technology (*Please visit Colorful official website www .colorful.cn (check the latest memory compatibility list) |
| Storage interface | Supports a total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces – M.2 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) |
| Extension ports | Rear I/O interface: -1 PS/2 interface -2 USB 2.0 interfaces -2 USB 3.2 Gen 1 Type-A interfaces -1 HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1 VGA interface – 1 Gigabit network interface – 2 WiFi 5 antenna interfaces – 3 audio interfaces (audio in / audio out / microphone) Onboard device interface: – 1 CPU fan pin – 2 system fan pins – 1 USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces – 1 USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces – 1 water cooling pump pin – 1 front audio pin -1 front panel pin -1 speaker pin -1 serial port pin -1 ME write protect jumper -1 clear CMOS jumper -1 BIOS writer pin- 1 diagnostic card plug Pin -1 PS/2 wake control jumper |
| expansion slot | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
| System BIOS | 128M UEFI, supports multiple languages |
| Power management | Support S3, S4, network S5 wake-up, support scheduled boot and incoming call boot |
| Hardware monitoring | Controllable CPU fan speed, controllable system fan speed, CPU temperature monitoring, System temperature monitoring, and voltage monitoring of each group |
| Onboard network card | RTL8111H Gigabit network card, RTL8821CE WiFi 5 wireless network card, Bluetooth 4.2 |
| Onboard sound card | 5.1 channel sound card |
| Motherboard specifications | M-ATX form factor 225mm x 194mm |
